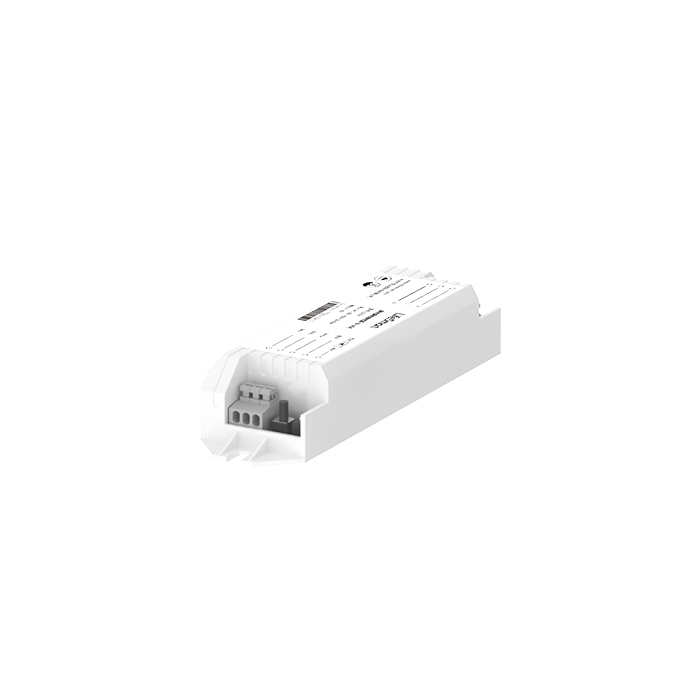

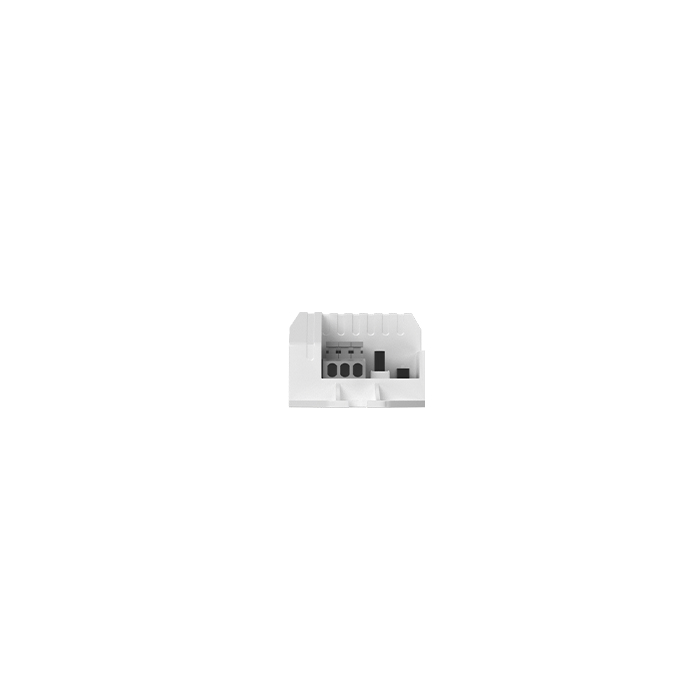

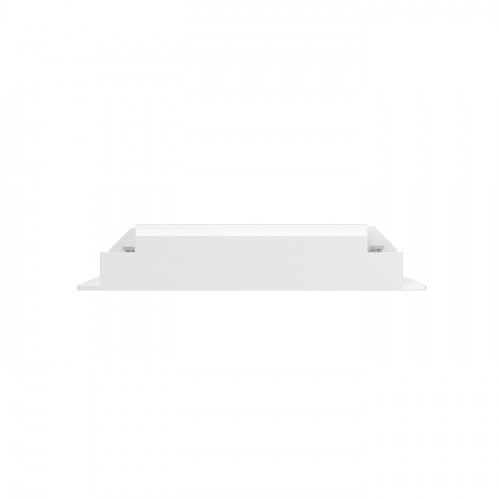

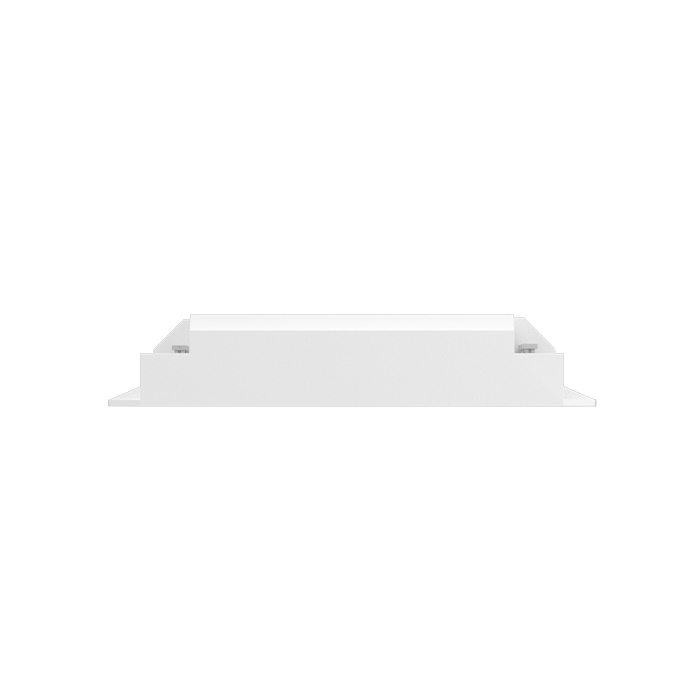

Two Channel Dimmer Controller(0-10V)
In charge of light brightness and color temperature
LifeSmart‘s Two Channel Dimmer Controller(0-10V) can form a complete dimming and color temperature solution with LifeSmart Smart Station, 0-10V dimming light and the driving. Users can adjust light brightness and color temperature on LifeSmart APP or Nature Mini. With other LifeSmart products, it can realize intelligent linkage, timing switch, soft change and other functions.
Download Intructions
Share:
Description
FEATURES
- Adjust brightness and color temperature
- Soft switch, natural transition
- It can be controlled by LifeSmart app and Nature Mini
- Control multiple 0-10V power drives at the same time
SPECFICATION
| General | |
| Wiring | Live+nuetral |
| Control Unit | 16A relay |
| Operating Temperature |
-5~45°C |
| Operating Humidity |
5~90% |
| Input | AC 100-240V 50/60Hz |
| Output | 0-10V |
| Static Consumption | <0.6W |
| Radio | |
| Radio Protocol | CoSS |
| Signal Range (Open Field) | 200m |
| Construction | |
| Dimension | 150.5*40*28mm
|
| Weight | 74g |
| Casing | PC |
