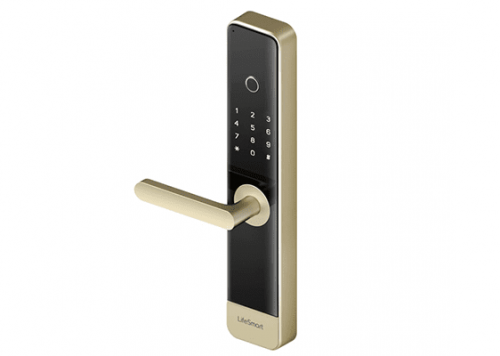

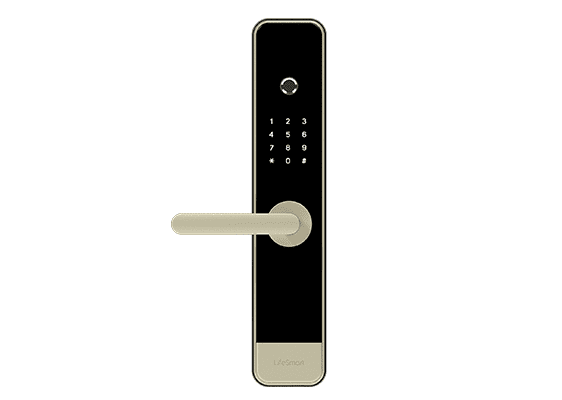

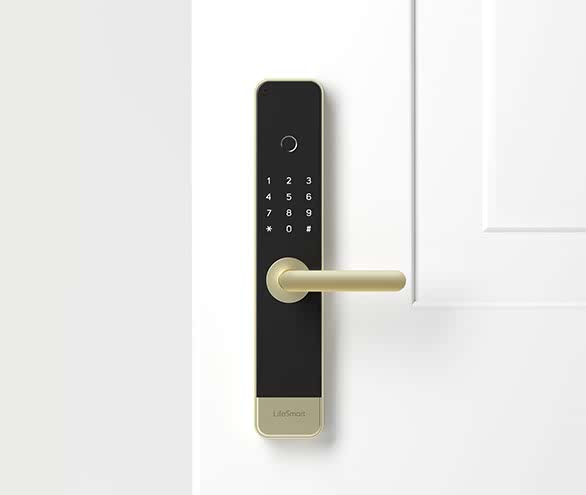

Smart Door Lock-Classic
A smart lock with multiple ways for access and can communi- cate with your home devices
Smart Door Lock (Classic) utilizes an independent encryption safety zone and a new type fingerprint acquisition device. It not only enhances the security performance of the door lock but also improves user experience and guarantees user privacy security.
Share:
Description
FEATURES
- Multiple access;
- Anti-theft lock case;
- Detect break-in and entrance attempts
SPECFICATION
| General | |
| Model Number | LS101GS/SL |
| Color | Gold / Silver |
| Dimensions | 385*75*33mm |
| Weight | 4130g |
| Casing | Glass panel，zinc alloy |
| Lock Case Grade | Super-B anti-theft lock case |
| Compatible Lock | 6068 lock body |
| Lock Body Size | 24*240 Square lock body (standard) 30*240 Round lock body (optional) 388 series overlord lock (optional) |
| Open Direction | Left / Right outer opening Left / Right inner opening |
| Unlock Mode | Fingerprint, password, NFC card, emergency key |
| Fingerprint Module | Biological fingerprint sensor |
| Rejection Rate | ≤1% |
| False Recognition Rate | ≤0.001% |
| Password Length | 6-12 Digit |
| Cryptographic Function | Visitor temporary password Privacy guard password Hijacking password alarm |
| Storage Quantity | Fingerprint*100 / Password*30/ NFC card*255 |
| Operating Temperature | -30~60°C |
| Operating Humidity | 20~90% |
| Power Supply | 8 AA alkaline batteries, 12V |
| Emergency Power Supply | USB |
| Battery Life | 10 times per day, last about 1 year |
| Interface | Micro USB emergency power interface |
| Button | Fingerprint button Keyboard Reset button Code matching button Doorbell button Door lock safety knob Back cover open button |
| Display | LED display |
| Camera | N/A |
| Speaker | High fidelity speaker |
| Microphone | HD microphone |
| Radio | |
| Radio Protocol | CoSS |
| Signal Range (Open Field) | CoSS: 200m |
