Nature Mini PRO
The only thing we changed is everything

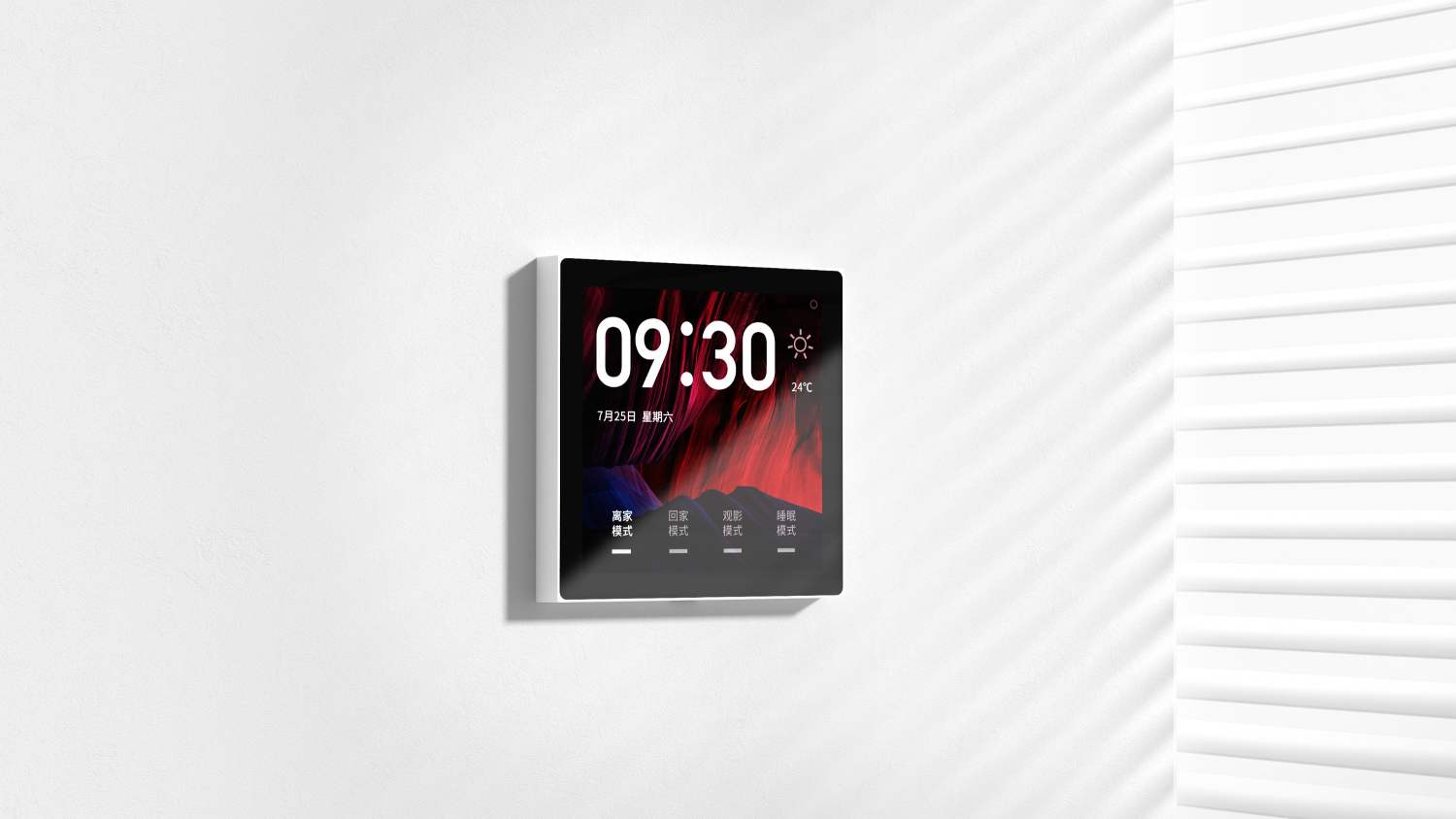

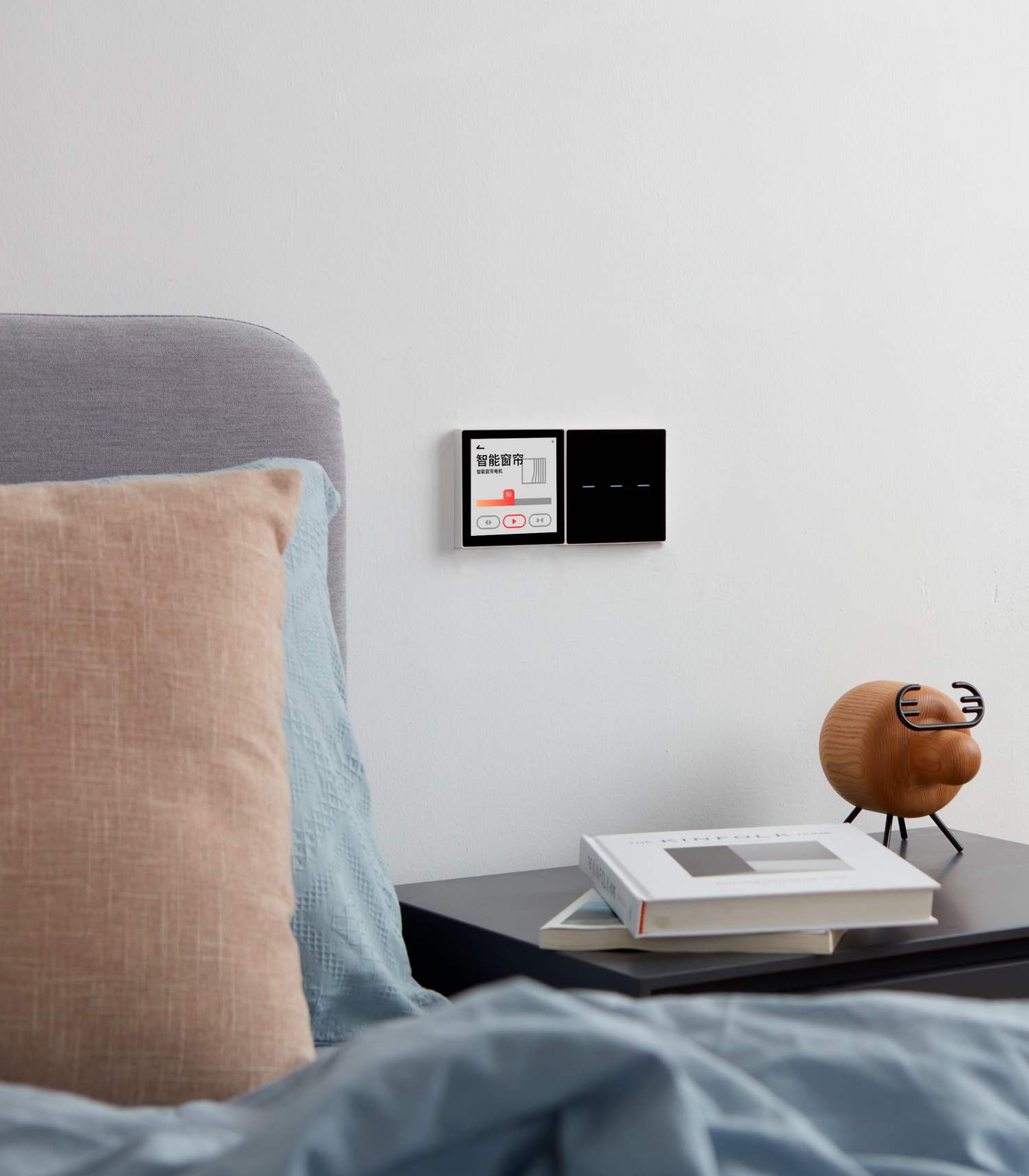

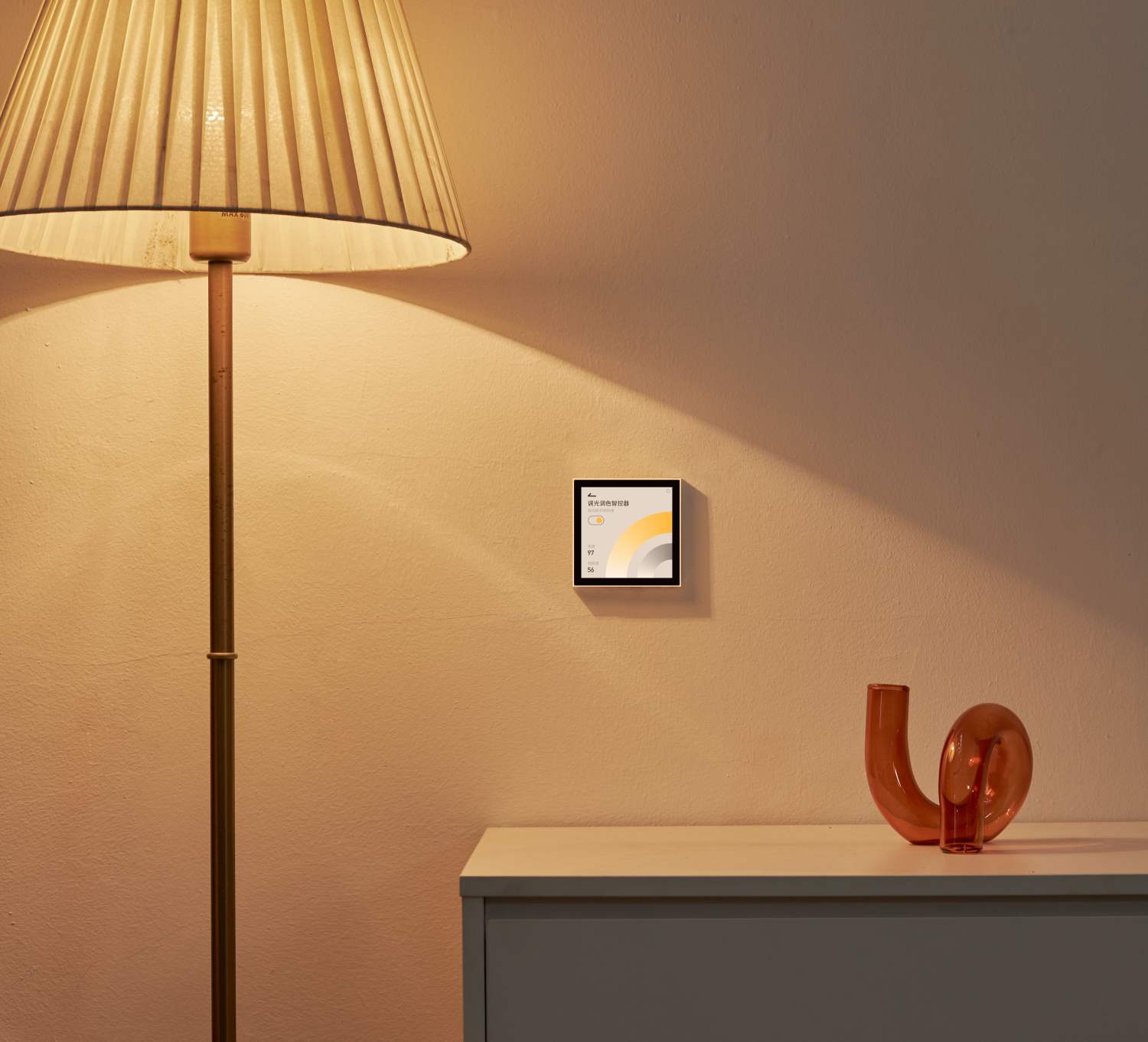

Nature Mini PRO is a smart home control panel installed at the intersec- tion of moving paths in your home. It has a 4-inch HD touch screen to provide you with a wide visual space and a comfortable interaction experience. With a powerful hardware platform to support multi-mode protocols and a customized operating system, it can transmit control signals to smart home devices and receive status feedback, thus realizing control functions of smart devices such as turning off lights and opening curtains.
Nature Mini PRO supports multiple protocols including CoSS, Zigbee, dual brand Wi-Fi and BLE.
Share:
Description
PRODUCT DESCRIPTION
Nature Mini PRO is a smart home control panel installed at the intersec- tion of moving paths in your home. It has a 4-inch HD touch screen to provide you with a wide visual space and a comfortable interaction experience. With a powerful hardware platform to support multi-mode protocols and a customized operating system, it can transmit control signals to smart home devices and receive status feedback, thus realizing control functions of smart devices such as turning off lights and opening curtains.
Nature Mini PRO supports multiple protocols including CoSS, Zigbee, dual brand Wi-Fi and BLE.
FEATURES
- Anti-Fingerprint HD Full-color Touch Screen
- Multi-protocol Wireless Transmission Protocol
- 5G+2.4g Dual-band Wi-Fi
- Reddot Award Best of the Best
- Ultra Low Power
- Performance Upgrade
SPECFICATION
| General | |
| Model Number | LS268 |
| Installation | In-wall concealed with 86 back box |
| Operating Temperature | -5~45℃ |
| Operating Humidity | 5~90% |
| Network | Wi-Fi 2.4GHz/5GHz |

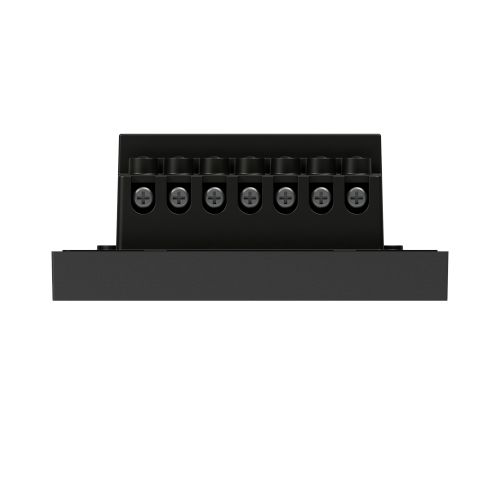

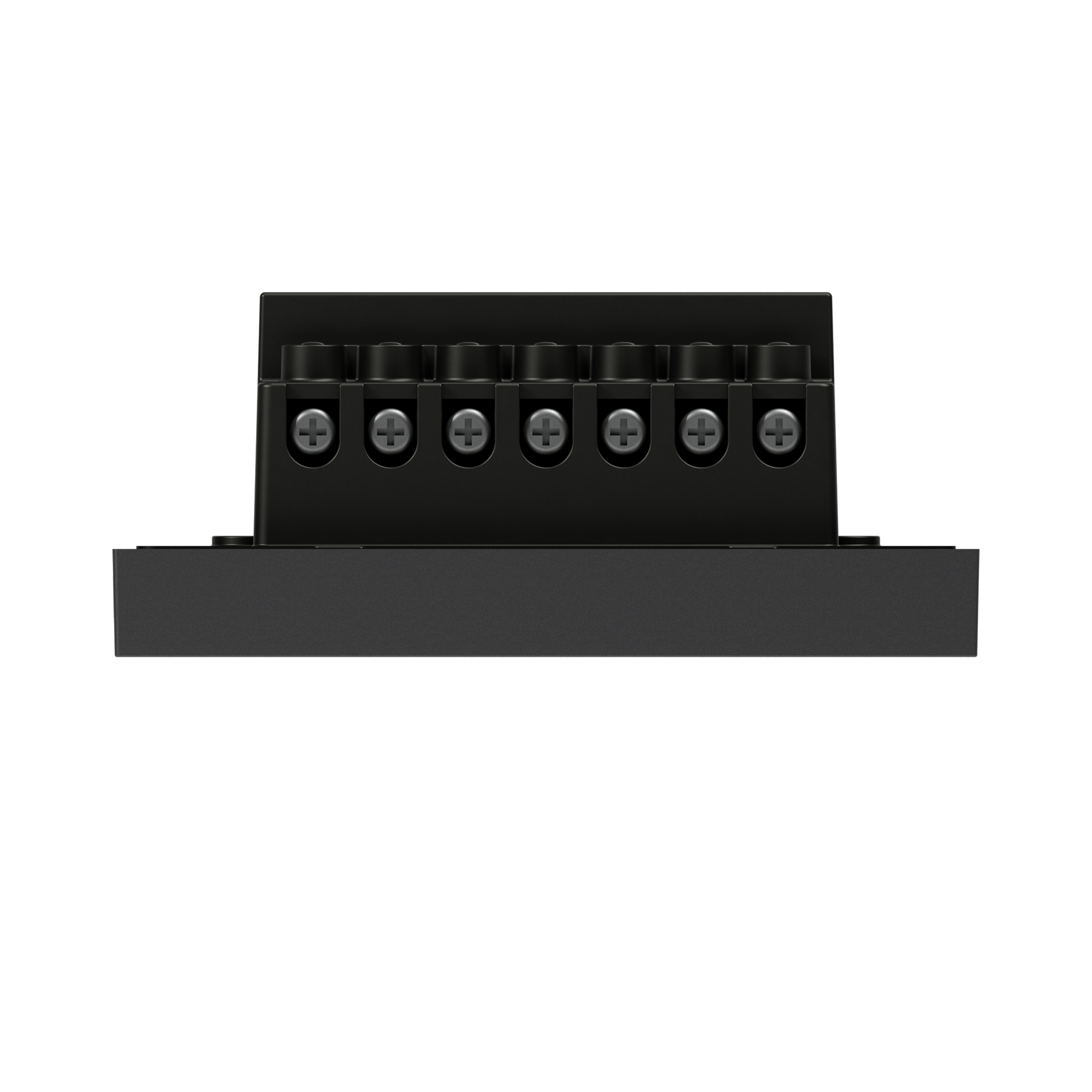

| Interface | Live/Neutral/Light1/Light2/Light3 wire in; |

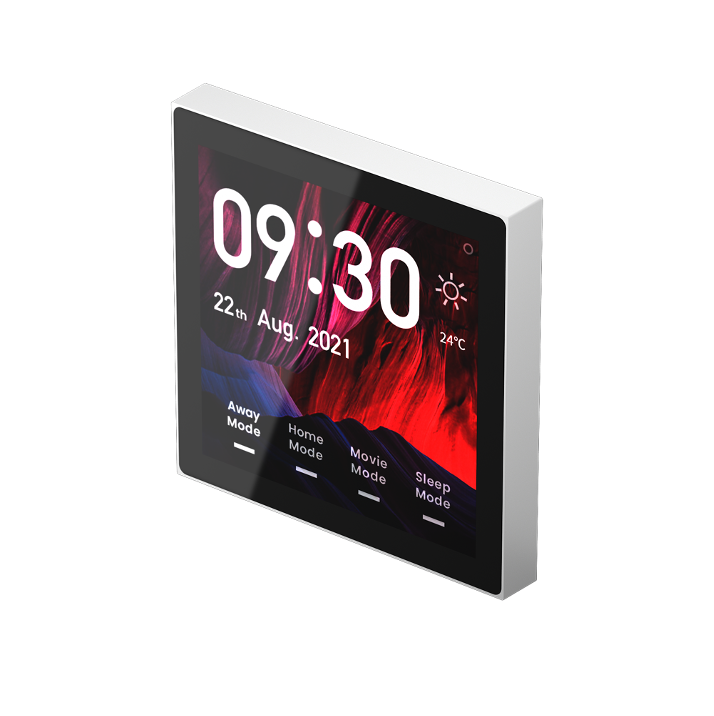

| Screen | 4 inch |
| Resolution | 480*480 |
| Operation System | Linux |
| Power Supply |
AC 100-240V 50/60Hz |
| Microphone | Yes |
| Speaker | Yes |
| Radio | |
| Radio Protocol | CoSS, Zigbee, Bluetooth |
| Radio Frequency |
2.4GHz/5GHz/433MHz GFSK
|
| Wireless Transmission Distance | 200m |
| Construction | |

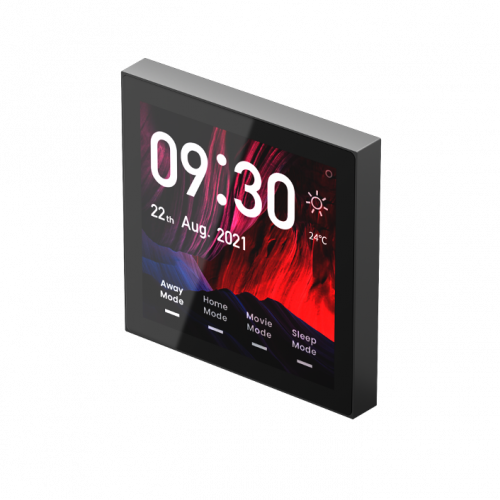

| Color | White/Gray |

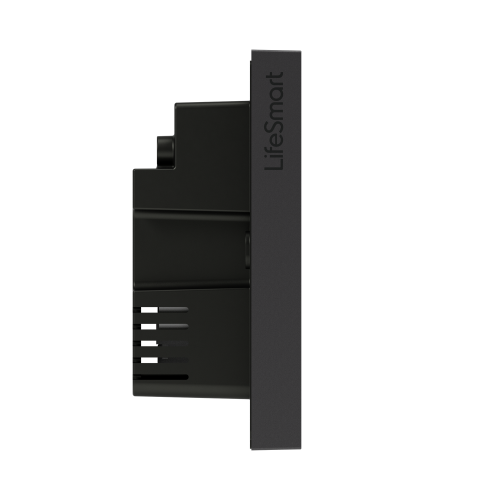

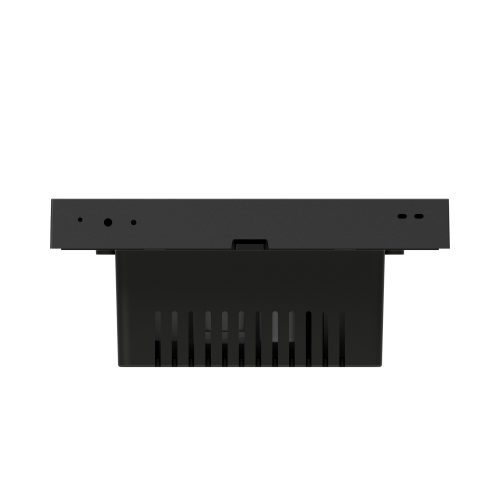

| Dimension | Outside the wall:86*86*11mm; Whole product:86*86*36mm
|
| Casing | Flameresistant PC |
